PL885E

Walk Through Body Detector PL885E

Non Contact body temp at 2 height @ 1.2 meter and 1.5 meter respectively. Six interlaced detection regions
Accuracy : (35.0°C~42.0°C)±0.2°C , (95.0 ~ 107.9°F) ±0.4°F
Measuring Distance: 4 to 8 cm
Buzzing Alarm at 37.3°C (Adjustable)
With counter meter for every person into the building.

• Fire Proof and shockproof
• LED alarm light on column, displaying the area of metal detected accurately
• Four pairs of infrared emission and the receiver to prevent detection blind spot
• 100% Ferrous & non-ferrous metal detect
• With aluminum alloy binding tape, up to 99% non-condensing
• Using microprocessor digital control technology, anti-interference ability,
• Each region has 100 adjustable sensitivity, in accordance with the requirements in the 0- 99 arbitrary regulation, and gets rid of the interference of belt, zippers and other objects.
• Pass-through number and the alarm frequency can be counted automatically

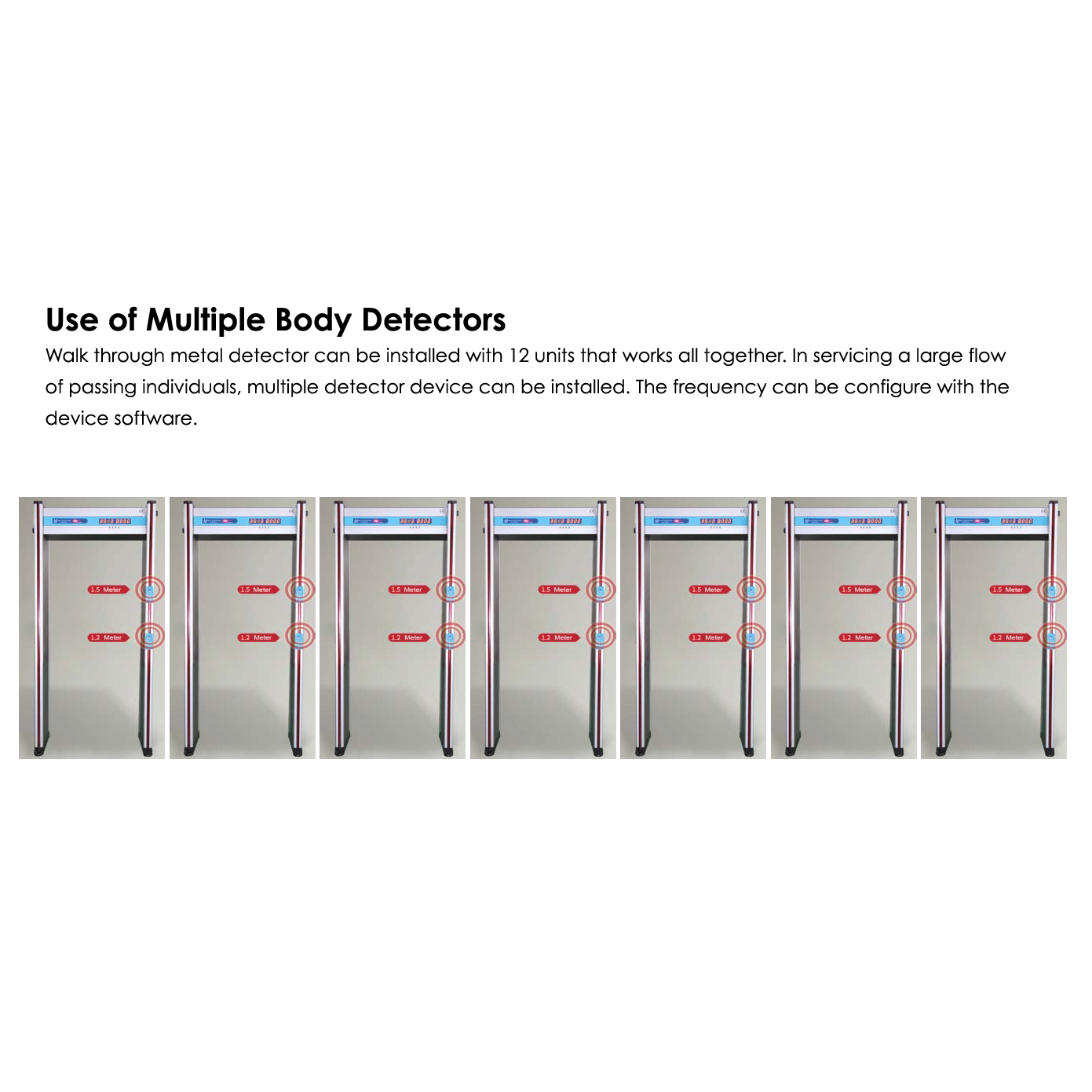

• Can be used independently, or several detection doors net work (minimum spacing of up to 40CM)to meet the flow requirements of pass throughcorrosion-resistant, and meets the current international safety standards.
• Password protection function: to prevent non-authorized personnel to amend the parameters.
• Standard: "GB 15210-1994. Through-type metal detector door general technical conditions" national standards Basic safety: meeting the requirements of GB4793 and program to be store in non-volatile memory; Comply with IP20(60529); Personal safety : Satisfied NILECJ-0601.
• EMC electromagnetic radiation in line with the standards: comply EN60950,no harm to the wearers of heart pacemakers, pregnant women, film and magnetic recording materials.

• Operation Voltage : AC220V 50/60Hz
• Power : ≤35 W
• Operation Temperature : -10°C  to 50°C
• Storage Temperature : -25°C  to 75°C
• Signal Frequency : 6-9 KHz(adjustable)
• Package Weight : about 75kg
• Total Weight : about 95kg
• Overall dimension : 2200mm *750mm × 500 mm
• Channel Size : 2000 mm *700 mm *500 mm

The product is made of PVC material, wear-resistant and corrosion-resistant, and meets the current international safety standards.
